| Brand Name: | VIKSTARS |
| Model Number: | VS-FLD-H |
| MOQ: | 20pcs |
| Price: | Negotiable |
| Packaging Details: | ITEM:VS-FLD-H10 Lamp size: 400*100*180mm, Lamp Carton: 41.5*12*15cm, 1pc/ctn |
| Payment Terms: | T/T |

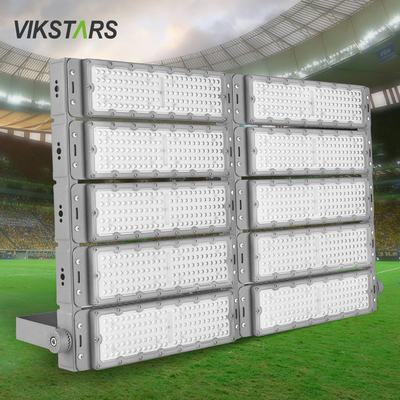

Good Price 100W Module Flood Lights IP65 Waterproof High Stadium Mast Lighting Reflectors
DELIVERY

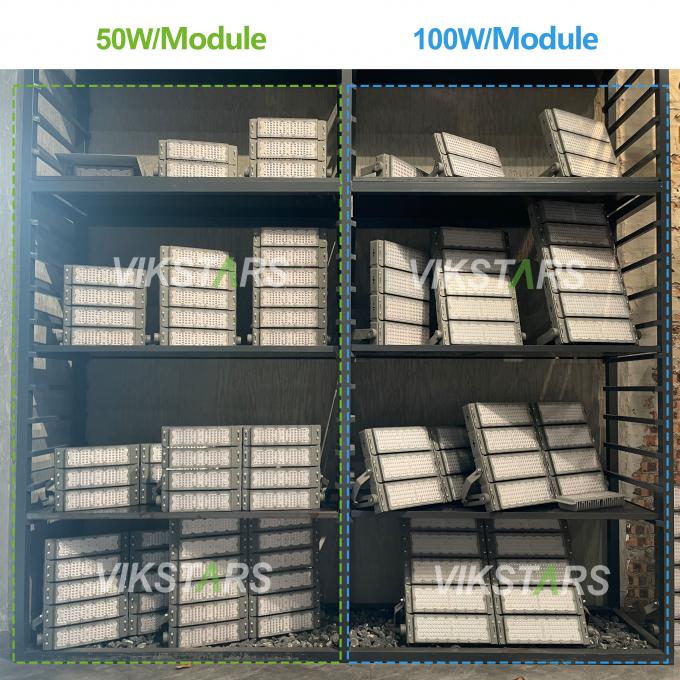

| LAMP NAME | LED MODULE FLOOD LIGHTS (100W/module) | |||||
| MODEL NO. | VS-FLD-H10 | VS-FLD-H20 | VS-FLD-H30 | VS-FLD-H50 | VS-FLD-H80 | VS-FLD-H120 |

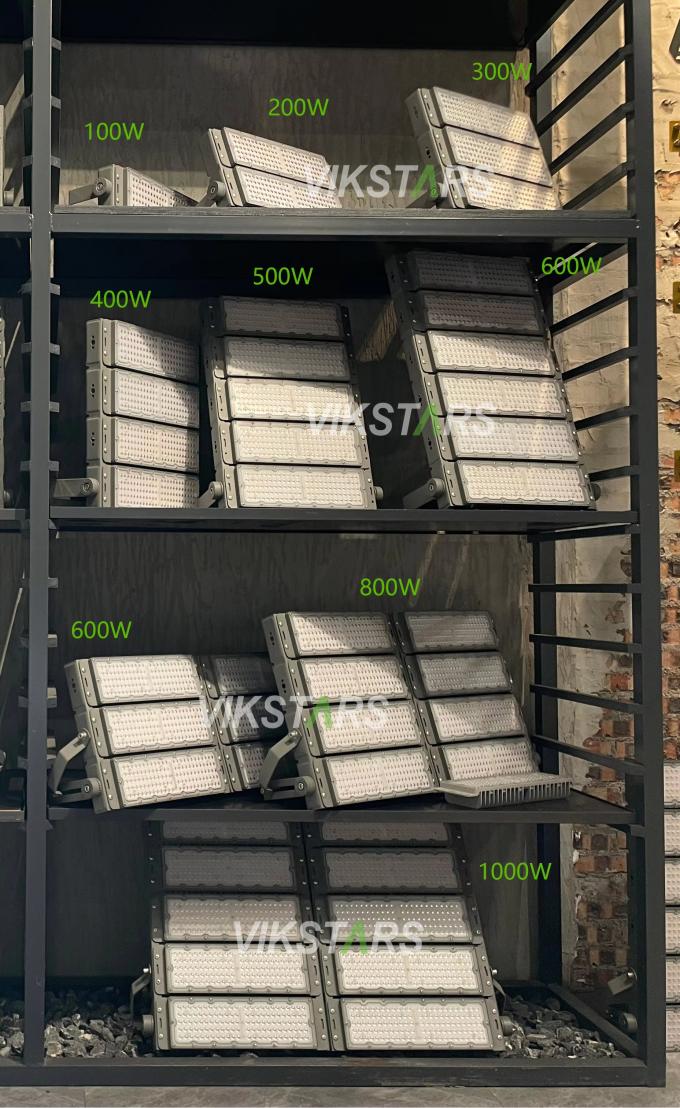

| POWER | 100W | 200W | 300W | 500W | 800W | 1200W |
| BEAM ANGLE |
Regular 90° (30° /60° / 70*145° for option)
|
|||||
| VOLTAGE | 100-265Vac | |||||
| C.R.I. | 70-80Ra | |||||
| LIFESPAN | >50000Hrs | |||||
| PF | >0.95 | |||||
| CCT |
Regular Cold White (Warm White / Neutral White for option)
|
|||||
| WORK TEMP |
-20℃ - 50℃
|
|||||
| WATERPROOF | IP65 | |||||
| MATERIAL | Die-casting Aluminum Heat Sink + PC Lens / Sand Grey | |||||

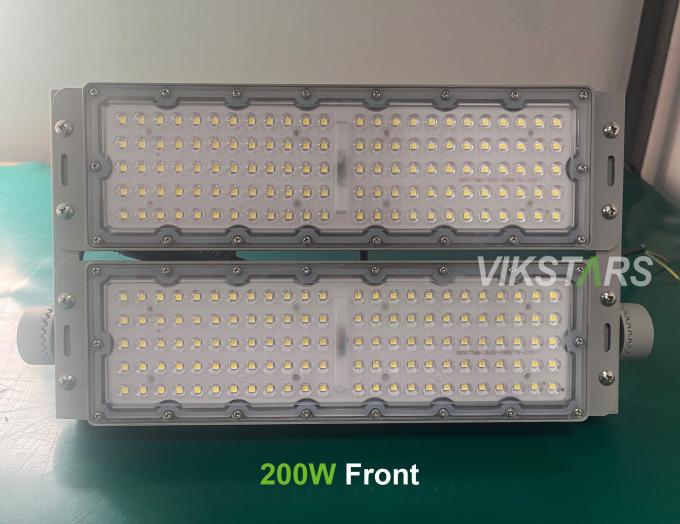

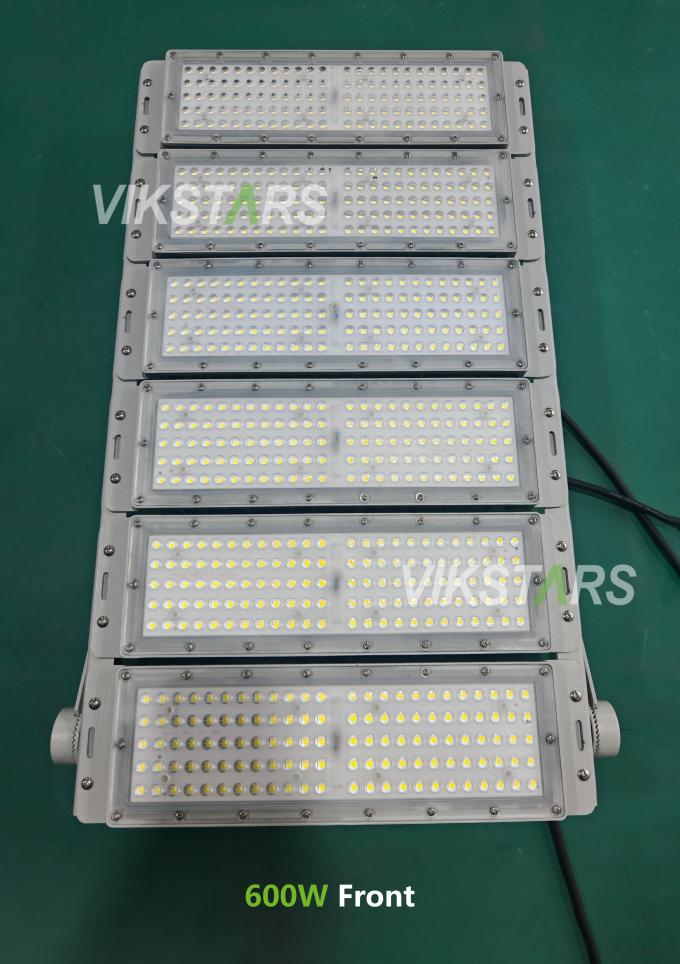

| LED QUANTITY |
120pcs
*1 module
|
120pcs*
*2 modules
|
120pcs
*3 modules
|
120pcs
*5 modules
|
120pcs
*8 modules
|
120pcs
*12 modules
|

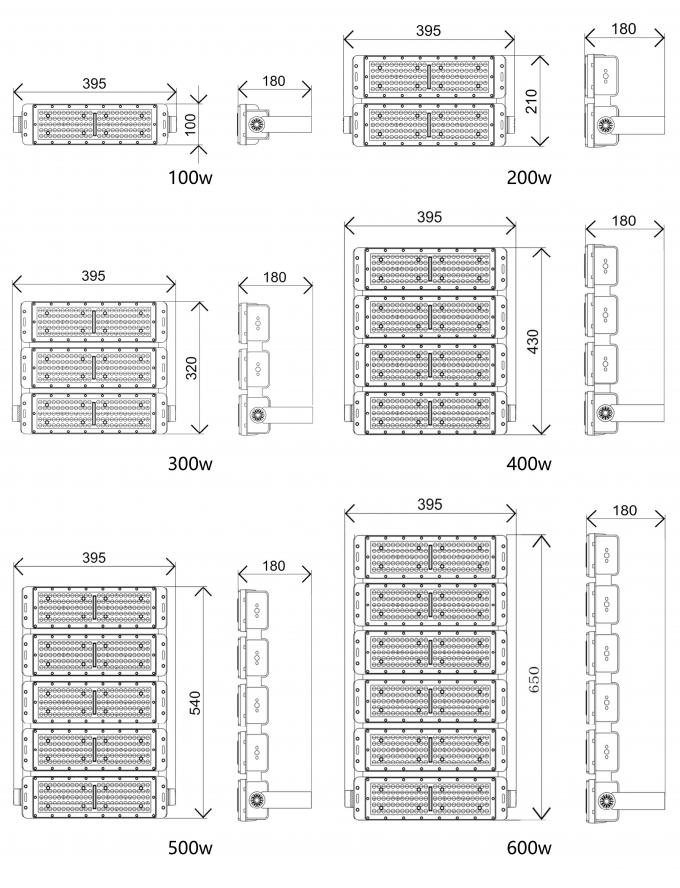

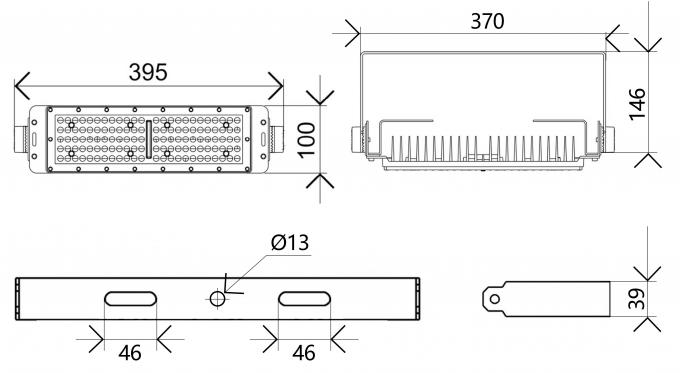

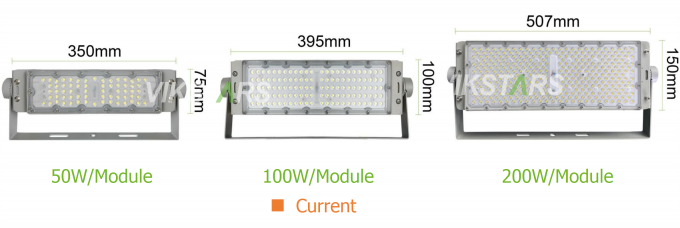

| LAMP SIZE |
395*100
*180mm
|
395*210
*180mm
|
395*320
*180mm
|
395*540
*180mm
|
765*410
*180mm
|
765*620
*180mm
|
| INSTALL WAY | Floor / Hanging / Wall Mounted / Pole Install | |||||
| PACKING | Export Neutral Carton / VIKSTARS Brand / Customizing Packing |
|||||
| SOLUTION | Selected Solution |
Project Solution
|
Top-level Solution |
| LED TYPE | 3030 | 3030 | LUMILEDS-2835 |
| EFFICIENCY | 130lm/w | 150lm/w | 150lm/w |

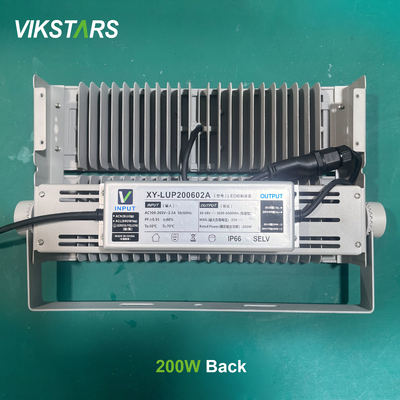

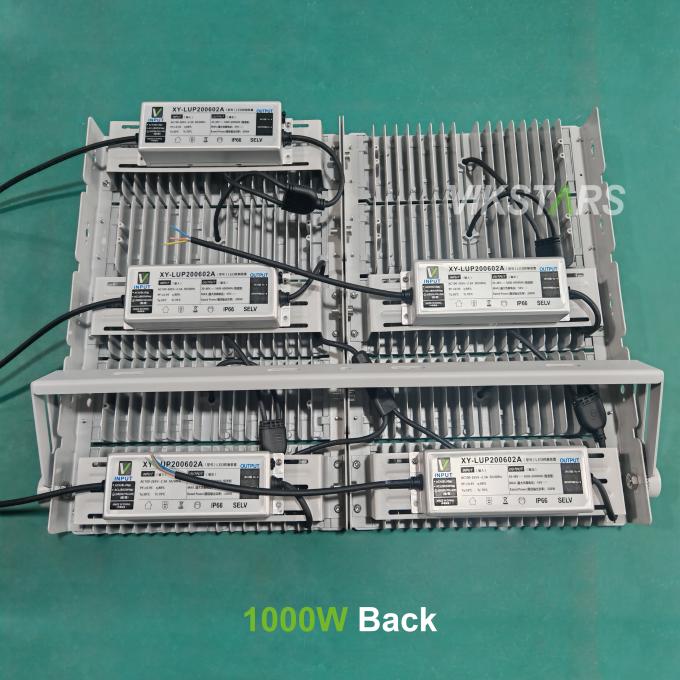

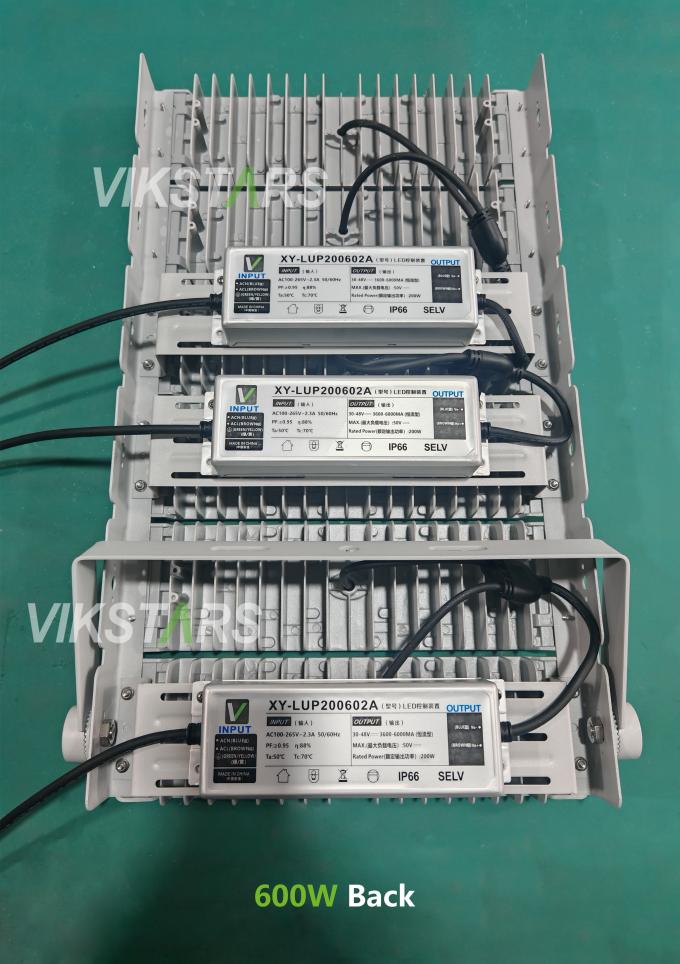

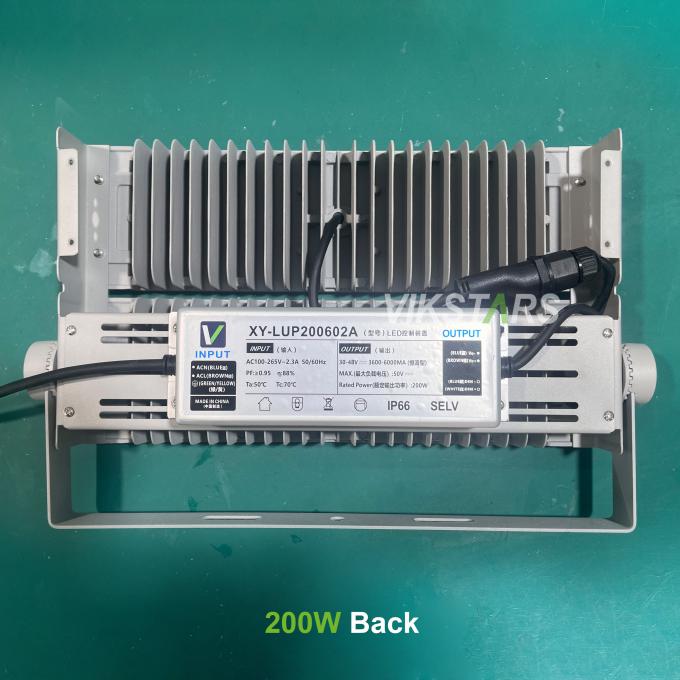

| DRIVER |
VIKSTARS
Self-Developed Driver
|
VIKSTARS
Self-Developed Driver
|
Global Certified
MEANWELL Driver
|
| WARRANTY |
3 Years
|
3 Years
|
5 Years
|

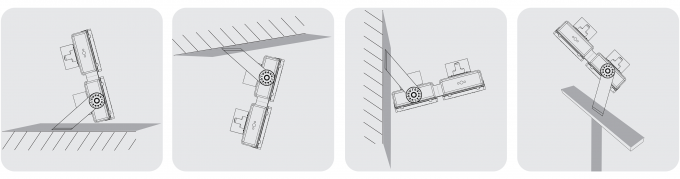

| Ground Install | Ceiling Install | Wall Install | Pole Install |

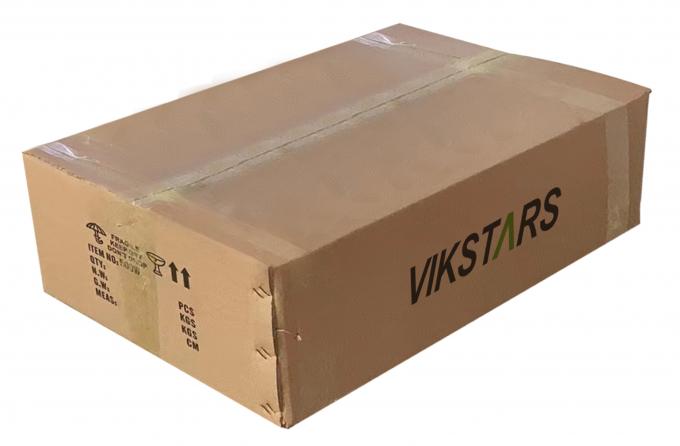

| Power | Carton Size | Qty/Ctn | G.W. | Packing |
| 100W | 415*120*150mm | 1pc/ctn | 2.25kg |
Export Neutral Carton Packing
/ VIKSTARS Brand Packing
/ Customizing Packing
|
| 200W | 415*220*150mm | 1pc/ctn | 3.60kg | |
| 300W | 415*320*150mm | 1pc/ctn | 5.60kg | |
| 400W | 415*425*150mm | 1pc/ctn | 7.20kg | |
| 500W | 415*530*150mm | 1pc/ctn | 8.65kg | |
| 600W | 415*635*150mm | 1pc/ctn | 10.50kg | |
| 800W | 780*425*150mm | 1pc/ctn | 15.00kg | |
| 1000W | 780*530*150mm | 1pc/ctn | 18.00kg | |
| 1200W | 780*635*150mm | 1pc/ctn | 21.00kg |
|
|
