| Brand Name: | VIKSTARS |
| Model Number: | VS-UFO-B |
| MOQ: | 20pcs |
| Price: | Negotiable |
| Packaging Details: | ITEM: VS-UFO-B20 QTY/CTN : 1pc/CTN G. W : 5.50Kg CTN SIZE: 42.5*42.5*15cm |
| Payment Terms: | T/T |

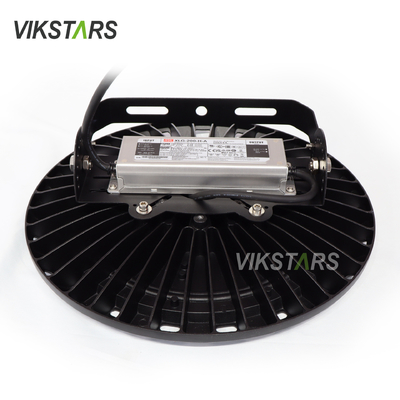

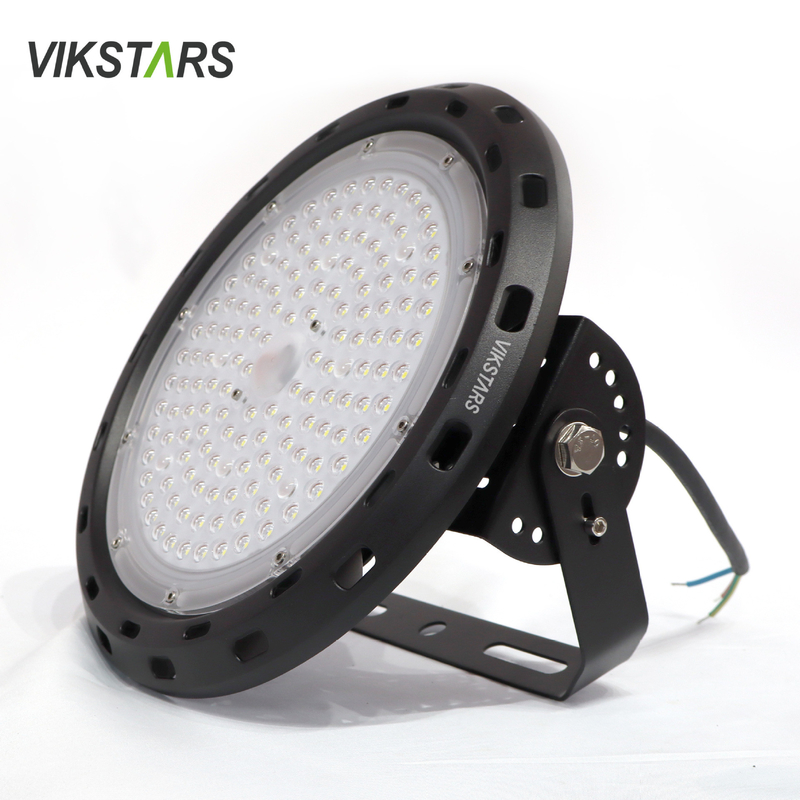

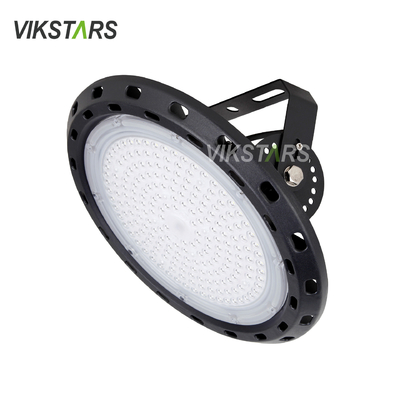

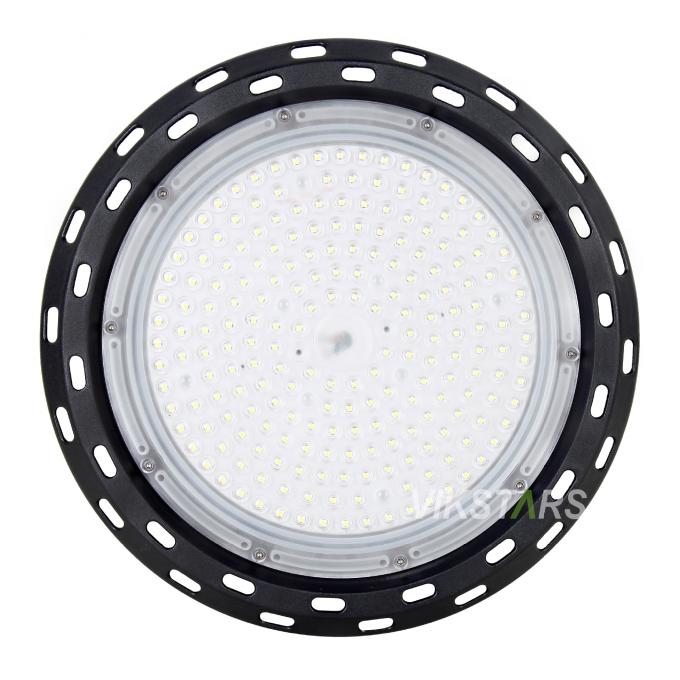

Bracket Install LED UFO High Bay Lights With Meanwell Driver Longlifespan 5 Years Warranty
|
LAMP NAME
|
UFO High Bay Light
|
||||
|
MODEL NO.
|
VS-UFO-B05
|
VS-UFO-B10 | VS-UFO-B15 | VS-UFO-B20 | VS-UFO-B24 |
|
POWER
|
50W | 100W | 150W | 200W | 240W |
| INSTALL HEIGHT |
3-4m Distance 3-4m |
5-7m Distance 5-7m |
8-10m Distance 8-10m |
10-12m Distance 10-12m |
12-14m Distance 12-14m |
|
LEDs QTY
|
98pcs
|
140pcs | 210pcs |
280pcs
|
|
|
BEAM ANGLE
|
90° For Regular (60°/120°)
|
||||
|
VOLTAGE
|
85-265/277Vac
|
||||
|
C.R.I.
|
70-80Ra
|
||||
|
LIFESPAN
|
>50000Hrs | ||||
| PF |
> 0.9
|
||||
| CCT |
Warm White / Nature White / Cold white
|
||||
|
WORK TEMP
|
-20℃ - 50℃
|
||||
|
WATERPROOF
|
IP65
|
||||
|
INSTALL WAY
|
Hanging / Pole / Bracket Installation
|
||||
|
PACKING
|
Export neutral carton packing / VIKSTARS brand packing / Customizing packing
|
||||
|
MATERIAL
|
Die-casting Aluminum heat sink +PC lens/ Black
|
||||
|
SOLUTION
|
Selected Solution |
Project Solution
|
Top-level Solution-A | Top-level Solution-B |
| LEDs | 3030 | 3030 | EMC3030 | EMC3030 |
|
LUMEN EFFICIENCY
|
110lm/w | 130lm/w | 140lm/w | 140lm/w |
|

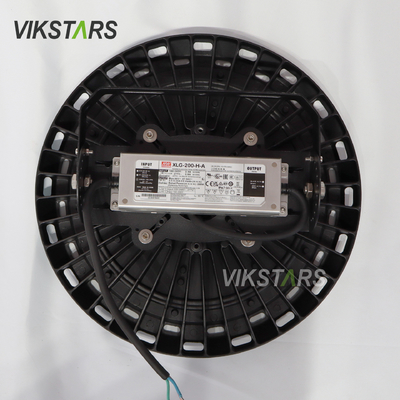

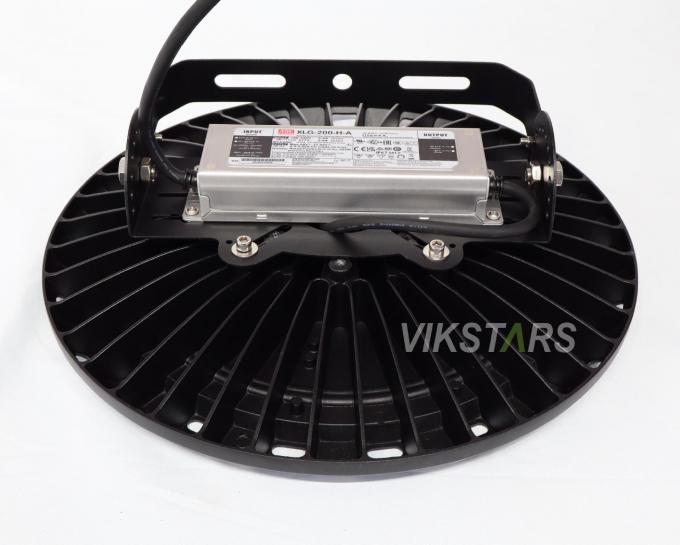

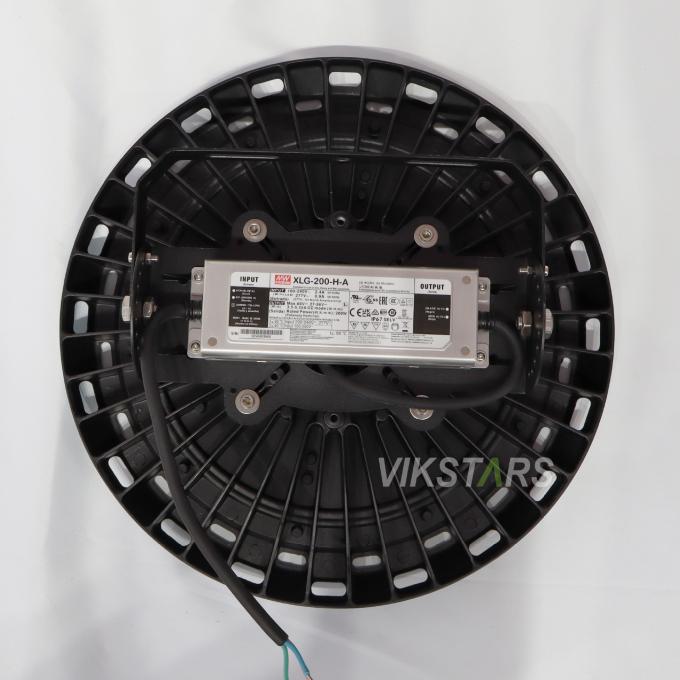

DRIVER
|
Big Chip Isolated Driver |
Big Chip Isolated Driver |
HGB- Meanwell
Round Driver
|
XLG-Meanwell
Long Driver
|
|
WARRANTY
|
3 years | 3 years | 5 Years | 5 Years |
| 50W Size | / | D240*H100.5 | / | / |
| 100W Size | D290*H100 | D290*H113 | D290*H100 | D290*H108 |
| 150W Size | D340*H110 | D340*H117 | D340*H108 | D340*H115 |
| 200W Size | D330*H115 | D390*H127 | D386*H118 | D386*H118 |
| 240W Size | / | D390*H127 | D386*H118 | D386*H118 |
 |
||
| Hanging Install | Pole Install | Bracket Install |
 |
|
| 50W | 100W |
 |
|
| 150W | 200W/240W |
| same size, different weight | |
|
Power
|
Carton Size | Qty/ctn | G.W./ctn |

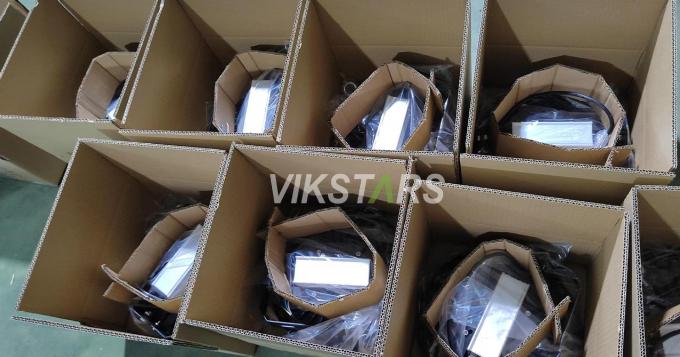

Packing
|
| 50W | 270*270*150mm | 1pc/ctn | 1.40kg |
Export Neutral Carton Packing
/ VIKSTARS Brand Packing
/ Customizing Packing
|
| 100W | 295*295*150mm | 1pc/ctn | 1.70kg | |
| 150W | 345*345*160mm | 1pc/ctn | 2.30kg | |
| 200W | 390*390*163mm | 1pc/ctn | 3.80kg | |
| 240W | 390*390*163mm | 1pc/ctn | 4.80kg |
|
